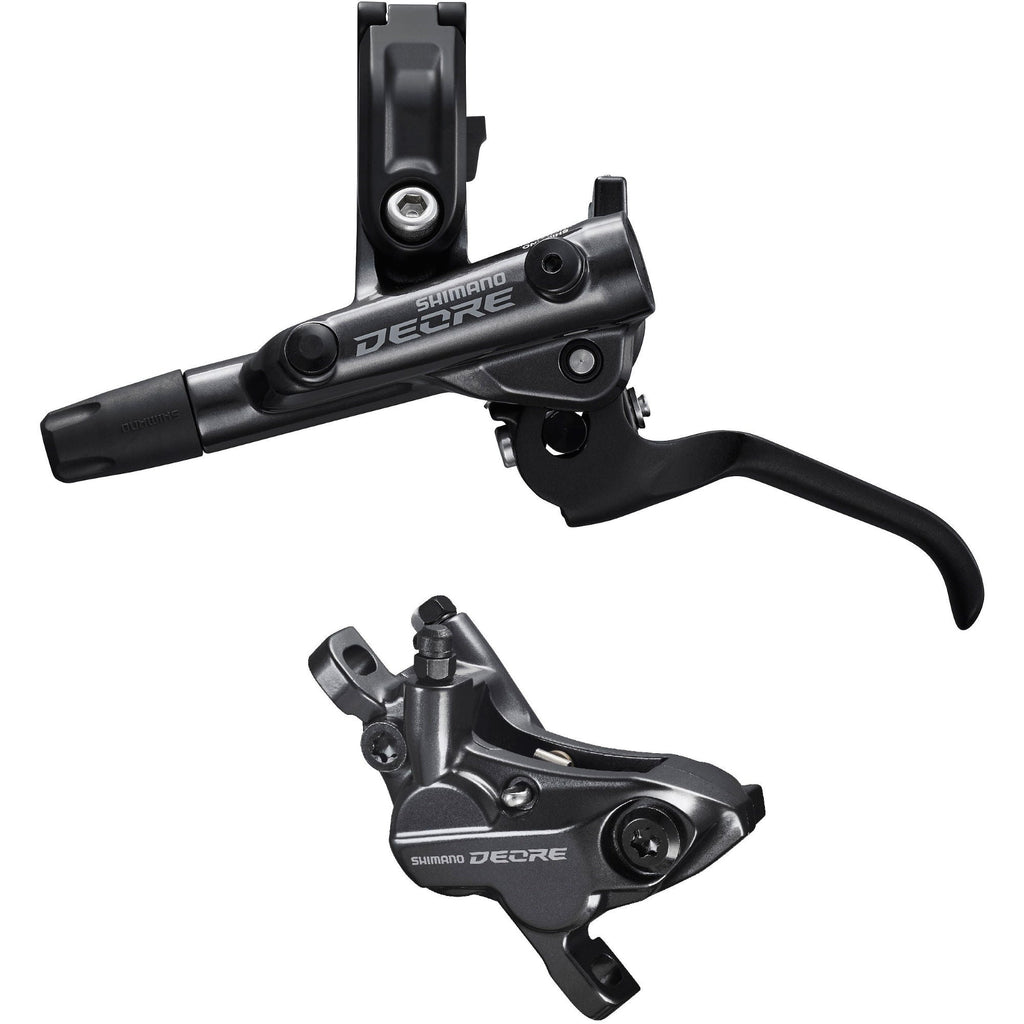

Shimano DEORE MTB Hydraulic Disc Brake 4 Pot



This hydraulic disc brake features a robust alloy lever construction, which allows it to withstand all the knocks and bumps that are associated with weaving between the trails. Shimano has also equipped this model with an adjustable lever reach, so you can easily tweak it to match your hand size, riding style and the terrain conditions.

Item Top Features Continued:

Adjustment: Reach adjustment
Centrelock Compatible: Yes
6-bolt Compatible: Conventional 6-bolt rotors can be used all in a choice of 160mm, 180mm and 203mm
Adaptors/Rotors Included: No
Cables/Hose Included: Yes
Hose Length: 1700mm
Included: Resin pads (can be used with sintered and Ice Tech pads), plus spare olives and insert should you wish to adjust the length of the cuttable hoses
Single or Pair: Single
Part Number: Left Hand Rear: M6120LR; Right Hand Front: M6120RF

Centrelock Compatible: Can be used with the revolutionary Center Lock rotor system which fits easily to Center Lock compatible hubs; alternatively conventional 6-bolt rotors can be used all in a choice of 160mm, 180mm and 203mm.


Top Features:

  • Brake Lever Material: Alloy
  • Use: MTB
  • Type: Hydraulic disc brake
  • Clamp Design: Hinged clamp design
  • Caliper: 2-piece design
  • Piston: 4-piston
  • Oil: Mineral oil
  • Mounting System: Shim-less mounting system
  • Mount Type: Post mount
  • Compatibility: I-spec-EV compatible

Opposed 4-Piston Design: Opposed 4-piston design reduces leading effect and optimal pad wear increases braking control.
Two-piece Caliper: Two piece calliper design is both ridged and durable.
Ergonomic Alloy Brake Lever: Provides optimum comfort and performance.
Mineral Oil: Mineral oil brake fluid is non-corrosive and less hazardous than conventional hydraulic brake fluid.
Shim-less Mounting System: Shim-less mounting system allows for quick installation and setting up.
Reach Adjust: Brake lever features reach adjustment for perfect custom fit.
